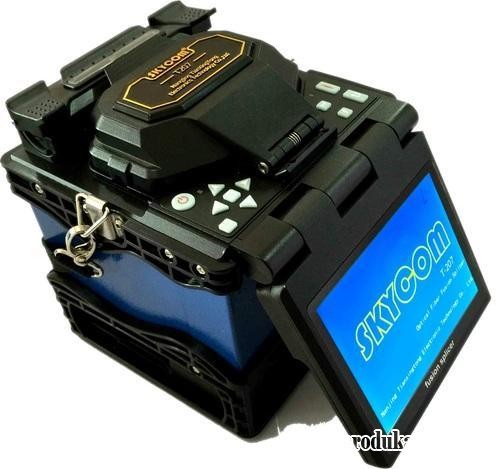

Fusion Splicer Skycom T207
Applicable Fibers : SM, MM, NZ-DS, EDF , Pigtail, Rubber-insulated wire Series
Average Splice Loss : 0.02dB( SM) , 0.01dB( MM) , 0.04dB( NZDS) , 0.04dB( EDF)
Return Loss : e60dB
Tension Test : 2.0N( 200gf) Standard
Typical splicing/ heating time : 10sec/ 30sec
Splicing Program : 50 groups
Protection Sleeve Length : 20mm, 40mm, 60mm
Language : Eanglish
Operating condition : -10+ 50 ( operation temperature) , 0 95% RH( humidity) , 0 5000m( altitude)
Power Supply : AC100 240V input voltage, 50/ 60Hz; 12V, 5A output voltage( DC) / 12V voltage 8AH( inner Li-battery)
Monitor : 5 inches high Resolution colorful LCD display
Fiber image magnification : Simultaneous X and Y views with300 times magnification
Storage of splice result : 6, 000 groups of splice results.
Optical Fiber Fixture : 7 Fiber Fixtures & 4 Kinds of Fixtures
Dimensions : 130 W 135 D 130 H
Weight : 2.21kg( excluding battery) battery weight: 370g
