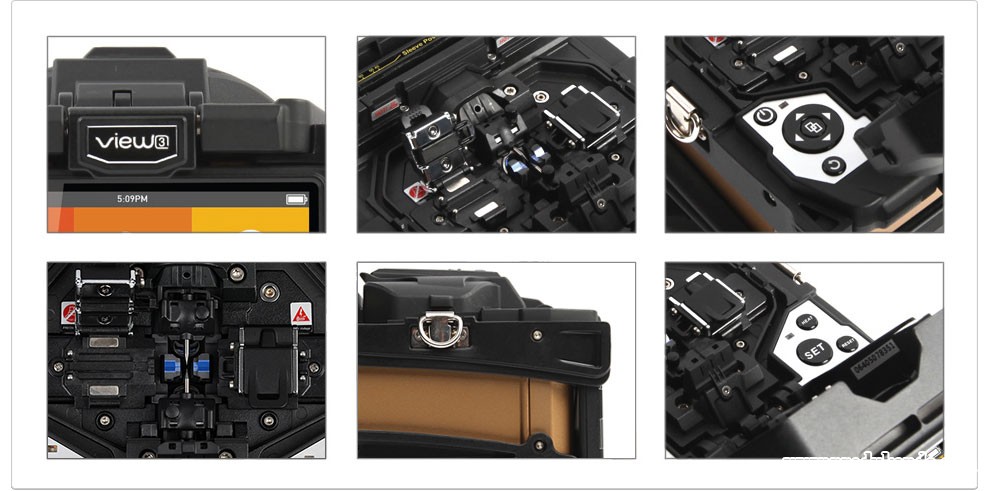

Fusion Splicer INNO View 3
View 3, an active clad-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 3’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 3 is the new industry standard of active clad-alignment splicer in the telecommunications industry.
- Active V-Groove Clad Alignment Splicing Method
- The World’s Highest Magnification and Resolution
- 5” High-Resolution Color LCD Touch Screen
- User-friendly Smart GUI
- Double Tap to Zoom in & out
- Detachable SOC Holder and Heating Oven
- High Capacity Battery
- 3 Bright LEDs and Illuminated Keypads
For Dark Environment - Ceramic Clamp for Improved Durability
- Easy to Replace Electrodes
- Protective Cover
- Harsh Weather Conditions Adaptability
- 1.95kg weight (without battery)
Active V-Groove
Active V-Groove Clad Alignment Splicing MethodView 3 has the up-to-date Active V-groove technology adapted, which provides much better reliability than a fixed V-groove technology does.
Display
5” High-Resolution Color LCD Touch ScreenThe View series certainly outdoes the other splicers’ viewing experience. Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles.
Interface
User-friendly Smart GUIThe advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.
SOC Compatibility
Detachable SOC Holder and Heating OvenView 3’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.
Battery
High Capacity BatteryHigh capacity battery provides long enough power for working in the field, which is the industry’s standard 170 splicing/heating cycles by 4200mAh.
LED Working Light
3 Bright LEDs For Dark EnvironmentEven in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.
Clamp
Ceramic Clamp for Improved DurabilityCeramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.
Electrode Cover
User-friendly Electrode CoverSpecially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.
| Model | View 3 |
|---|---|
| Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
| Weight | 2.31KG (with battery) / 1.95KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB(ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 30 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
| MODEL NO. | QTY. | |
|---|---|---|
| Fusion Splicer | View 3 | 1 |
| High Precision Cleaver | VF-15H | 1 |
| Fiber Holder | VFH-40(equipped) / FH-SOC | 1 |
| SOC Heater Cover | HT-SOC | 1 |
| AC Adapter | JS-180300 | 1 |
| Cooling Tray | CG-22 | 1 |
| Electrode | E-50 | 1 |
| Electrode Grinder | EG-18 | 1 |
| Manual CD | CD | 1 |
| Battery Pack | LBT-40 | 1 |
| Power Cable | ACC-25 | 1 |
| USB Cable | USB-5P | 1 |
| Cigarette Lighter Cable | CJ-11 | 1 |
| Carrying Case | NBX-35 | 1 |
