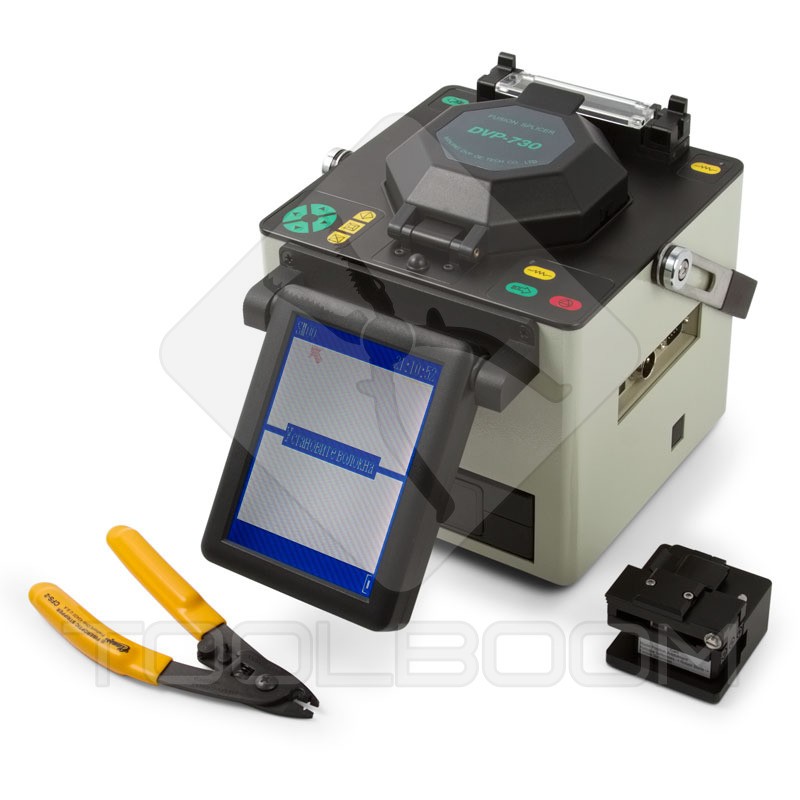

The DVP-730 is used in various working conditions for field fiber splicing and can splice any type of fiber optic cables. The device is supplied with a kit of miscellaneous tools and accessories. Due to the long battery life and both side operation option, the Fusion Splicer DVP-730 keeps operating even in the toughest environments. This offer provides superior quality at an affordable price.
Downloads
Download additional informationFeatures
- Color LCD monitor
- Simultaneous X and Y views
- Reversible monitor with control panels on each side
- Max. wind velocity of 15 m/s.
- 9 Sec. splice time, 40 Sec. tube-heat time
- Large capacity internal battery pack with a charger
- SYSTEM TEST ensures the best working condition
- User programmable
- Auto check fiber end face
- Auto calibrated parameters
- Stores 8000 splice results
- Multiple language interface
Specifications
| Applicable fibers | Single mode and multi mode silica-base optical glass fiber: SM, MM, DS, NZ-DS, EDF |
| Cladding diameter | 100 - 150 µm |
| Coating diameter | 100 - 1000 µm |
| Cleave length | 16 mm (standard) |
| Average splice loss | Single mode fiber: Typ. 0.02 dB Dispersion shifted fiber: Typ. 0.04 dB Multi mode fiber: Typ. 0.01dB |
| Return loss | ≥ 60 dB |
| Average splice time | Typ. 9 seconds |
| Fiber protection sleeve shrinking time | 40 mm / 60 mm sleeve: Typ.40 seconds |
| Protection sleeve length | 20 mm, 40 mm, 60 mm |
| Battery / charger | Input power: 85 ∼ 260 V, (47 ∼ 63 Hz) Output power: 9 ∼ 3 V, 10 Ah, up to 150 times of continuous splices and heats |
| DC adaptor | 12 V voltage, optional multipurpose external battery |
| Tension test | 2.0 N (standard), average 1,96 N (200 gf) |
| Program test | Atmospheric pressure (maximum altitude: 5000 m), temperature and humidity. Automatic calibration by observing distance of the GAP during arc discharge. |
| Types of splicing mode | Auto & Manual |
| Splicing programs | SM, MM, DS, NZ-DS, EDF |
| Storage of splice results | 8000 splice results in the internal memory |
| Interface | RS232 interface & video output |
| Interface languages | English, Chinese, Korean, Russian, Spanish etc. |
| Operation conditions | -25 ~ +50°C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude), 15 m/s (maximum allowed wind velocity) |
| Storage environment | -40 ~ +80°C (temperature), 0 ~ 95% (humidity) |
| Dimensions | 170 (W) x 140 (H) x 170 (D) mm |
| Weight | 3.3 kg |
